Wiegand Converters - Wiegand Splitters - Wiegand Extenders - Cypress Integration Solutions.

Cypress Wireless, Fibre Optic, Ethernet and Communication solutions. Including OSM-1000 OSDP to Wiegand, CVX-OPTW Converters and HHR Handheld Mobile Readers.

Cypress Integration Solutions is a recognised leader in the design and manufacture of Access Control Solutions. Windmill Computing supplies Cypress products to customers in the UK, across Europe and Worldwide. Contact us for details.

Cypress Lifetime Warranty: There is a lifetime warranty for most Cypress products ( products with a battery, such as HHR-xxxx unit, have 1-year warranty)

The CVX-OPTW Wiegand splitter

The CVX-OPTW Wiegand splitter allows the Wiegand data to go to multiple panels and other devices. Datasheet details here-CVX-OPTW Wiegand splitter.

Cypress are deeply committed to OSDP and Windmill are stockist of the OSM-1000, OSDP to Wiegand Converter.

Buy the OSM-1000, OSDP to Wiegand Converter here.

Overview: The OSM-1000. OSMIUM™ OSDP-Wiegand Converter

  • Convert legacy Wiegand readers to SIA’s OSDP™ 2-wire protocol
  • Integrate legacy Wiegand panels with OSDP readers
  • Supports up to 256-bit Wiegand with GPIO including LED, lock, REX and door status
  • OSDP Secure Channel AES-128 encryption halts Wiegand hacks

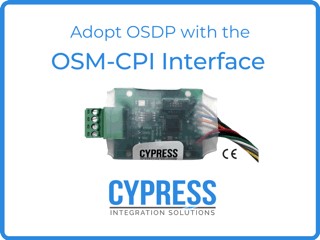

Buy the OSM-CPI, OSDP Legacy Controller Interface here.

Contact us here for details.

Available Now! Wireless Handheld Reader kit with wireless OSDP Secure Channel AES-128 Encryption.

Buy the OSDP single lane reader HHR-4166-GY or the OSDP dual lane version, HHR-4156-WH.

Discover more about the OSM-1000 OSDP-Wiegand Converter here

OSDP specifically applies to peripheral devices (PDs) such as card readers and other devices at secured access doors/gates and their control panels (CPs).

With OSDP, all the functions which used to require 12 or more physical wires between the door location and the access control panel (including wires for the card reader, door strike, alarm contact, and Request to Exit functions) can be fully implemented using just 2 wires.

The OSDP specification is recommended when TCP/IP, USB, or other common protocols do not lend themselves to the application. A primary advantage of OSDP is the low cost of implementation in an embedded device.

Video: How to Fix :THE WIEGAND SECURITY FLAW

For your project requirements and more Cypress product range of intergration solutions contact us.

See other products in this category

Cypress Integration CVX-1300 Universal Data Converter

Handheld mobile reader

Cypress Computer Systems, Inc

OSDP-Wiegand Control Panel Interface

Downloads

PDF Download

CVX-OPTW Wiring Diagram

PDF Download

Cypress HHR-3260 Reader Kit Manual

PDF Download

Cypress OSM 1000 Users Guide

PDF Download

Cypress lifetime warranty

PDF Download

HHR-BOOT DataSheet.

PDF Download

Cypress HHR Mobile Reader Product Chart

Converters

Cypress Wiegand Splitter, OSDP Converter, Data Bender™ and Universal Wiegand wedge

Currency:  GBP | USD | EUR
OSDP Converter. Compliant with OSDP 2.1.7

OSDP-Wiegand Interface with I/O - Connect legacy Wiegand panel to OSDP readers (peripheral devices) or connected legacy Wiegand readers to OSDP access controllers (access control unit). Supports Secure Channel communication. Requires 8 - 16 VDC. No enclosure. Overall dimensions of unit: 3.20 x 1.60 x 0.60 (inch approx).

OSM-1000
OSM-1000-BRD

OSDP-Wiegand Interface with I/O - Connect legacy Wiegand panel to OSDP readers (peripheral devices) or connected legacy Wiegand readers to OSDP access controllers (access control unit). Supports Secure Channel communication. Requires 8 - 16 VDC. No enclosure. Overall dimensions of unit: 3.20 x 1.60 x 0.60 (inch approx).

£138.58

OSDP-Wiegand Control Panel Interface to connect an OSDP reader (peripheral device) to a legacy Wiegand panel. Supports encrypted Secure Channel communication. Requires 6-30 Vdc input. No Enclosure. Overall dimensions of unit, excluding wires: 2.34 x 1.40 x 0.50 inches; wires are approximately 10 inches long.

OSM-CPI

OSDP-Wiegand Control Panel Interface to connect an OSDP reader (peripheral device) to a legacy Wiegand panel. Supports encrypted Secure Channel communication. Requires 6-30 Vdc input. No Enclosure. Overall dimensions of unit, excluding wires: 2.34 x 1.40 x 0.50 inches; wires are approximately 10 inches long.

£129.92

The CVX-OPTW Wiegand splitter allows the Wiegand data to go to multiple panels and other devices.

Wiegand Optical Isolator / Passive Wiegand Signal Splitter - Connect one reader to two access controllers, connect two readers to one panel, or electrically isolate one reader to one panel. Requires 5 VDC. Overall dimensions of each unit: 2.40 x 1.70 x 0.70 (inches approx).

CVX-OPTW

Wiegand Optical Isolator / Passive Wiegand Signal Splitter - Connect one reader to two access controllers, connect two readers to one panel, or electrically isolate one reader to one panel. Requires 5 VDC. Overall dimensions of each unit: 2.40 x 1.70 x 0.70 (inches approx).

£118.11

The CVX-1300 provides data format translations of numerous reader technology outputs into almost any other standard or proprietary format. More than 100 format translations are supported and field selectable using dip switches. The CVX-1300 is ideal for connecting dissimilar card, tag, badge and biometric readers to previously incompatible controllers.

Data Format Converter - Contains preconfigured conversions, see manual for details: www.cypressintegration.com or contact our sales team. Requires 8 - 16 VDC. Durable aluminum housing. Overall dimensions of unit: 4.50″ x 2.90″ x 1.00″ (approx).Data Bender™

CVX-1300

Data Format Converter - Contains preconfigured conversions, see manual for details: www.cypressintegration.com or contact our sales team. Requires 8 - 16 VDC. Durable aluminum housing. Overall dimensions of unit: 4.50″ x 2.90″ x 1.00″ (approx).Data Bender™

£328.35

CVX-1300 Data Format Converter -Data Bender™ Contains preconfigured conversions, see manual for details: www.cypressintegration.com. Requires 8 - 16 VDC. No enclosure. Overall dimensions of unit: 4.50″ x 2.90″ x 1.00″ (approx).

CVX-1300-BRD

CVX-1300 Data Format Converter -Data Bender™ Contains preconfigured conversions, see manual for details: www.cypressintegration.com. Requires 8 - 16 VDC. No enclosure. Overall dimensions of unit: 4.50″ x 2.90″ x 1.00″ (approx).

£288.98

Data Format Converter -Data Bender™ Transcore Formats - see data sheets for format or contact our sales team. Overall dimension 4.25″ x 3 x .75″ (approx) 8 - 16 VDC required. Durable aluminum housing.

CVX-1301

Data Format Converter -Data Bender™ Transcore Formats - see data sheets for format or contact our sales team. Overall dimension 4.25″ x 3 x .75″ (approx) 8 - 16 VDC required. Durable aluminum housing.

£362.20

Data Bender™

Custom Data Format Converter -Data Bender™ For specific customer applications, convert between Wiegand, Clock & Data, RS-232, RS-485. Requires NRE fee to create new firmware. Non-standard applications may require a higher NRE fee. 16 VDC. Durable aluminum housing. Visit CypressIntegration.com/CustomSolutions for more details. *Standard NRE fee is $1500.00. Non-standard applications may require a higher NRE fee. Overall dimensions of each unit: 4.50″ x 2.90″ x 1.00″ (approx). CVX-14XX -CUSTOM re-order

CVX-1400

Custom Data Format Converter -Data Bender™ For specific customer applications, convert between Wiegand, Clock & Data, RS-232, RS-485. Requires NRE fee to create new firmware. Non-standard applications may require a higher NRE fee. 16 VDC. Durable aluminum housing. Visit CypressIntegration.com/CustomSolutions for more details. *Standard NRE fee is $1500.00. Non-standard applications may require a higher NRE fee. Overall dimensions of each unit: 4.50″ x 2.90″ x 1.00″ (approx). CVX-14XX -CUSTOM re-order

£1,574.80

Cypress Wiegand Intelligent Splitter

Cypress Wiegand Intelligent Splitter - creates 2 unique wiegand outputs from single wiegand input - overall dimension each unit 4.25″ x 3.0″ x .75″ (approx) - Durable aluminum enclosure - 8 - 16 VDC - Includes engineering fee for most applications - Engineering form must be submitted with order. Contact us for the form. Standard NRE fee is $1500.00. Non-standard applications may require a higher NRE fee.

CVX-OPTS

Cypress Wiegand Intelligent Splitter - creates 2 unique wiegand outputs from single wiegand input - overall dimension each unit 4.25″ x 3.0″ x .75″ (approx) - Durable aluminum enclosure - 8 - 16 VDC - Includes engineering fee for most applications - Engineering form must be submitted with order. Contact us for the form. Standard NRE fee is $1500.00. Non-standard applications may require a higher NRE fee.

£1,574.80

Cypress Wiegand intelligent splitter -Data Bender™ requires previous XXXXX order number - Reorders Only- N.B: Wiegand Intelligent Splitter - Reorder part number for existing CVX-OPTS units, requires unique 6 digit code. Requires 8 - 16 VDC. Durable aluminum housing. Overall dimensions of each unit: 4.50″ x 2.90″ x 1.00″ (approx).

CVX-OPTS-XXXXX

Cypress Wiegand intelligent splitter -Data Bender™ requires previous XXXXX order number - Reorders Only- N.B: Wiegand Intelligent Splitter - Reorder part number for existing CVX-OPTS units, requires unique 6 digit code. Requires 8 - 16 VDC. Durable aluminum housing. Overall dimensions of each unit: 4.50″ x 2.90″ x 1.00″ (approx).

£429.13
